MIL-DTL-4710E
REMOVABLE IDENTIFICATION CARD, BACK-UP
PLATE, .032 +.020 THICK TRANSPARENT
PLACTIC SHEET. TWO PER DRAWER,
H
PARTITION AND
IDENTIFICATION CARD.
F
GUIDES SAME THICKNESS
.125 ±.031
AS DRAWERS.
(TYP.)
REMOVABLE PARTITION .062 ±.010
THICK, TRANSPARENT SHEET.
.141 TUBULAR RIVET
INTERCHANGEABLE WITH ALL
DRAWERS. ONE PER DRAWER.
.625 ±.250
R .250
.250
E
G
2.188
-.032
D
5.250
2
D
-.062
TAB, LEATHER, .031 THICK.
1.500 LONG X .750 WIDE.
DRAWER
QUANTITY
CASE
DIMENSIONS
SIZE
REQ'D
NO.
D -.063
E -.063
F
G
H
4.750 .125 ±.025 3.500
A
6.250
1.000 MAX.
8
2
2.375 .100 ±.010 1.875
B
3.250
.625 MAX
64
1
2.375 .125 ±.010 1.875
C
6.250
.750 MAX
16
2
DRAWERS
TRANSPARENT PLASTIC

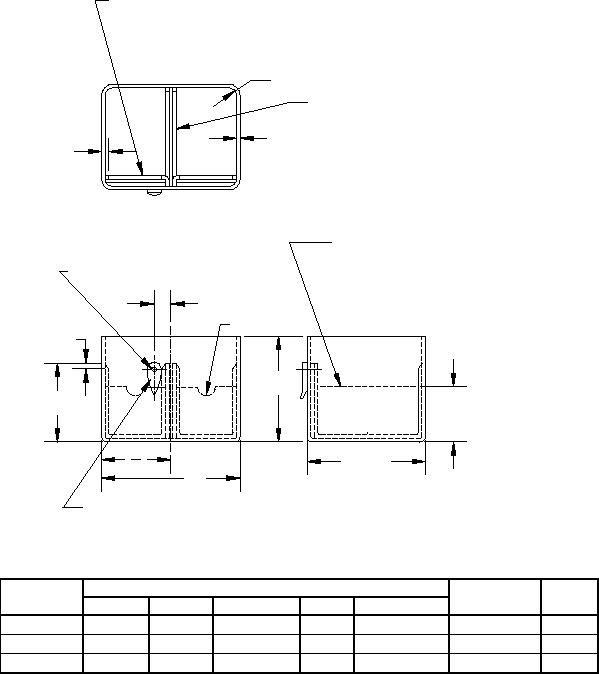

FIGURE 7
16
